Olycom 6-Port 1G Managed Industrial Network Switch
Key Features
- Port Configuration & Performance

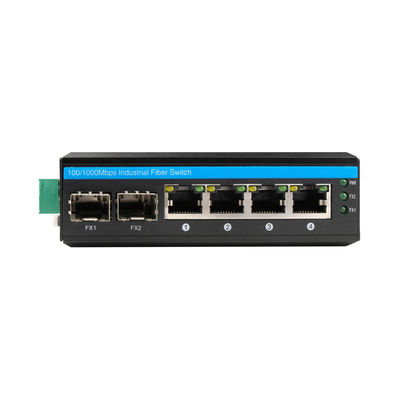

4× 10/100/1000Mbps RJ45 ports + 2× 100/1000Mbps SFP fiber uplinks
Store-and-forward architecture with <5μs latency
Switching capacity: 12Gbps; packet forwarding rate: 8.928Mpps
Jumbo frame support for enhanced data throughput
Corrugated IP40 metal shell for strong electromagnetic interference resistance

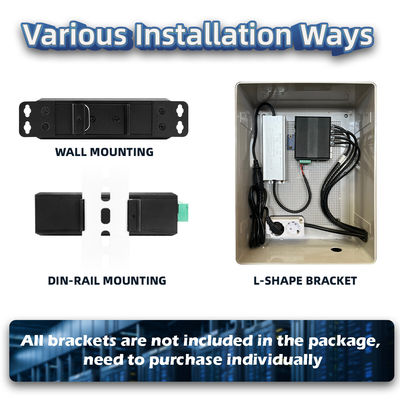

DIN-rail mounting for easy installation in control cabinets
Operating temperature: -40°C to +75°C; storage: -40°C to +85°C
6kV Ethernet surge protection; ESD ±8kV air / ±6kV contact
Complies with FCC Part 15 Class B, EN55032, EN55035, EN62368-1
- Advanced Network Management
Web, SNMPv1/v2, and Windows utility management interfaces
Supports VLAN (port-based & 802.1Q), QoS priority control, DSCP remapping
RSTP ring protocol for redundancy and fast recovery
IGMP snooping, broadcast storm suppression, and port isolation
DHCP Snooping with Option 82, 802.1X authentication (port or MAC based)
ARP binding, MAC filtering, and IP-MAC-port linkage for enhanced security
Syslog, SNMP Inform, ping/tracert detection, and MIB-II for remote O&M integration
Dual redundant DC12–52V input with reverse polarity and overload protection
Energy-efficient IEEE 802.3az (EEE) power management support
Power consumption <10W, fanless convection cooling for silent 24/7 operation
- Mechanical & Environmental
Size: 114 × 93 × 35mm; lightweight aluminum design
Humidity: 5–95% RH (non-condensing)
Warranty: 1-year replacement, 3-year repair service
Software Features
- Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
- Support RSTP ring protocol
- Support SNMPv1, v2 Web management, support user login password protection and other device configuration methods
- Support Jumbo frame, MAC restriction
- Support VLAN: support port VLAN and 802.1Q Tag
- Support QoS priority, DSCP remapping, Priority and Queue Mapping, Port Priority, Q queue weight
- Support IGMP port bandwidth control, broadcast storm suppression
- Support Port Aggregation, Port Mirroring, Port isolation, Bandwidth control
- Support MIB library opening to meet the requirements of operation and maintenance
- Support WEB, Windows utility and SNMP management methods
Specification
| Product Description |
10/100/1000Mbps Managed Industrial Fiber Switch(2F+4TP) |
| Model Name |
IM-FS240GM |
| Port |
2 x 1000Mpbs SFP port(support both 100M and 1000M SFP modules)
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2, HTTP, HTTPS
Syslog, SNMP Inform, Ping/tracert detection
MIB library: MIB-II, Ethernet-Like MIB
|
| Managed Features |
Jumbo frame processing
SDRAM: 2M
Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression
Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb
RSTP ring protocol
Multicast protocol: IGMP Snooping
Port management: support port isolation and port aggregation
DHCP management: support DHCP Snooping, option 82
QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities
Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning
Support ARP learning function off and on, ARP message speed limit
Support IP+MAC+ port manual and automatic scanning binding
Set IEEE 802.1x(Port based, MAC based)
Can transparently transmit 802.1x data packets/port loop detection
|
| Switching Features |
Exchange capacity: 12Gbps
Packet forwarding rate: 8.928Mpps
Swap delay: <5us
MAC address table: 2K
Transmission method: store and forward
|
| Power Supply |
Input voltage: DC12-52V
Reverse connection: support
Overload protection: support
Redundant protection: support
|
| Environment |
Working Temp: -40°～75°C
Storage Temp: -40°～85°C
Humidity: 5%～95%, non-condensing
|
| Industry Standards |
47 CFR FCC Part 15 Subpart B (Class B)ANSI C63.4:2014
EN IEC 62368-1:2020+A11:2020
EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
|
| Mechanical Information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 114*93*35mm
Mounting method: Din-rail mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Dimension
Applications
The IM-FS240GM is built for industrial communication, automation, and security networks that demand high stability and wide temperature tolerance.
Typical deployments include:
- Factory & Industrial Automation: Connecting PLCs, sensors, and control units in production lines
- Transportation Systems: Reliable networking for rail, highway, and intelligent traffic systems
- Video Surveillance: Stable gigabit transmission for outdoor IP cameras and NVRs
- Energy & Utilities: Data backhaul for substations, power distribution, and monitoring stations
- Smart City Infrastructure: Integration of IoT, environmental sensors, and communication nodes
